Yamaha

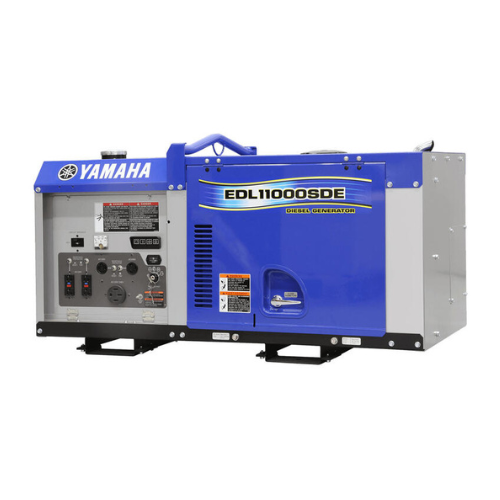

Yamaha EDL11000SDE Generator
Yamaha EDL11000SDE Generator
SKU:
Regular price
$10,499.00 CAD
Regular price
Sale price
$10,499.00 CAD
Unit price
per
Couldn't load pickup availability
The largest member of our diesel family of generators is the EDL11000SDE. Despite its high output, its compact design, low overall height and reduced noise levels make it a versatile performer. If lower running costs and easier maintenance access are important to your business, farm, job site or off grid application, then check out extensive range of features the EDL11000SDE offers.
- Powered by D722 vertical type diesel engine; 719cc, liquid-cooled (rad with cooling fan), three cylinder, 4-stroke diesel engine with electronic ignition. Max power is 12.2 kW or 16.4 hp.
- Compact and lightweight design... smallest and lightest in its class
- Key operated electric starting
- Dual 120 & 240 volt output
- Rated AC output for continuous use is 10 kVA (10,000 watts) / 83.3 amps @ 120 volts & 41.7 amps @ 240 volts
- Generator unit is directly connected to the engine eliminating the need for reduction gears.
| L X W X H MM (IN) | 1281 x 618 x 698 mm (50.4 x 24.3 x 27.5") |
|---|---|
| DRY WEIGHT | 295 kg (650 lbs.) |
| FUEL TANK CAPACITY (L) | 28 |
| OPERATING HOURS (@ RATED LOAD) | 7 hrs |
| NOISE LEVEL (@ 7 METRES) | 69 dB |
| TYPE | Brush-type, Syncronous, AC generator |
|---|---|
| MAXIMUM AC OUTPUT (WATTS / AMPERES) | 11 kW (11,000 W) |
| RATED AC OUTPUT (WATTS / AMPERES) - CONTINUOUS USE | 10 kV / 10,000 W / 83.3 A @ 120 V & 41.7A @ 240 V |
| AC VOLTAGE & FREQUENCY (HZ) | 120 & / 240 V / 60 HZ |
| NEUTRAL | Bonded to frame |
| AC RECEPTACLE* | L5 30 (30A - 125V) / L6 30 (30A - 250V) / 14R 50 (50A - 125/250V) / 5 - 20R GFCI x 2 |
